Fold-up Polywell

Postby DeltaV » Tue Apr 12, 2016 6:02 pm

When you need to travel with a fusion reactor in your carry-on bag...



(From )

The coils for these arrangements interfere if you try to fold them...



hanelyp
Posts: 2255
Joined: Fri Oct 26, 2007 8:50 pm
[phpBB Debug] PHP Warning: in file [ROOT]/vendor/twig/twig/lib/Twig/Extension/Core.php on line 1236: count(): Parameter must be an array or an object that implements Countable

Re: Fold-up Polywell

Postby hanelyp » Wed Apr 13, 2016 12:32 am

It's harder to see in the first 2, but I think those also have interference when folding.
The daylight is uncomfortably bright for eyes so long in the dark.

DeltaV
Posts: 2245
Joined: Mon Oct 12, 2009 5:05 am
[phpBB Debug] PHP Warning: in file [ROOT]/vendor/twig/twig/lib/Twig/Extension/Core.php on line 1236: count(): Parameter must be an array or an object that implements Countable

Re: Fold-up Polywell

Postby DeltaV » Wed Apr 13, 2016 1:35 pm

You're right. I should have viewed it with IrfanView (hit 'G' to stop animation).

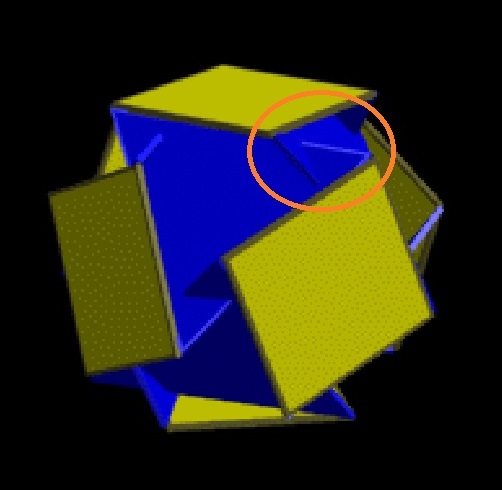

The solution seems obvious...
Conform the coils to lie in nested spherical shells, with small differences in diameters.
But that may not work either since the triangles seem to hit near the corners, where the pivots are located.

Maybe raypeters or tombo can do a CAD kinematics study?
Juno may already have solved it -- hard to tell with the transparent linkages:

Looks like it could work if you allowed the coils to be non-rigid.
Would like to see a mag field sim during expansion, if I only had the time...
Attachments

DeltaV
Posts: 2245
Joined: Mon Oct 12, 2009 5:05 am
[phpBB Debug] PHP Warning: in file [ROOT]/vendor/twig/twig/lib/Twig/Extension/Core.php on line 1236: count(): Parameter must be an array or an object that implements Countable

Re: Fold-up Polywell

Postby DeltaV » Wed Apr 13, 2016 2:06 pm

This one is really interesting:



D Tibbets
Posts: 2775
Joined: Thu Jun 26, 2008 6:52 am
[phpBB Debug] PHP Warning: in file [ROOT]/vendor/twig/twig/lib/Twig/Extension/Core.php on line 1236: count(): Parameter must be an array or an object that implements Countable

Re: Fold-up Polywell

Postby D Tibbets » Wed Apr 13, 2016 10:56 pm

As an exercise in geometry, this may be interesting. But for a real reactor it is ,um, meaningless. Keep in mind that each magnet face is a separate assembly that has to have cooling plumbing, power leads, structural supports (against the powerful repulsion between all magnets, a robust and cooled vacuum vessel, etc.

Dan Tibbets
To error is human... and I'm very human.

DeltaV
Posts: 2245
Joined: Mon Oct 12, 2009 5:05 am
[phpBB Debug] PHP Warning: in file [ROOT]/vendor/twig/twig/lib/Twig/Extension/Core.php on line 1236: count(): Parameter must be an array or an object that implements Countable

Re: Fold-up Polywell

Postby DeltaV » Thu Apr 14, 2016 3:58 am

Attachments
Last edited by DeltaV on Sat Sep 10, 2016 12:59 am, edited 1 time in total.

KitemanSA
Posts: 6114
Joined: Sun Sep 28, 2008 3:05 pm
Location: OlyPen WA
[phpBB Debug] PHP Warning: in file [ROOT]/vendor/twig/twig/lib/Twig/Extension/Core.php on line 1236: count(): Parameter must be an array or an object that implements Countable

Re: Fold-up Polywell

Postby KitemanSA » Thu Apr 14, 2016 5:48 am


DeltaV
Posts: 2245
Joined: Mon Oct 12, 2009 5:05 am
[phpBB Debug] PHP Warning: in file [ROOT]/vendor/twig/twig/lib/Twig/Extension/Core.php on line 1236: count(): Parameter must be an array or an object that implements Countable

Re: Fold-up Polywell

Postby DeltaV » Sat Apr 16, 2016 4:31 am

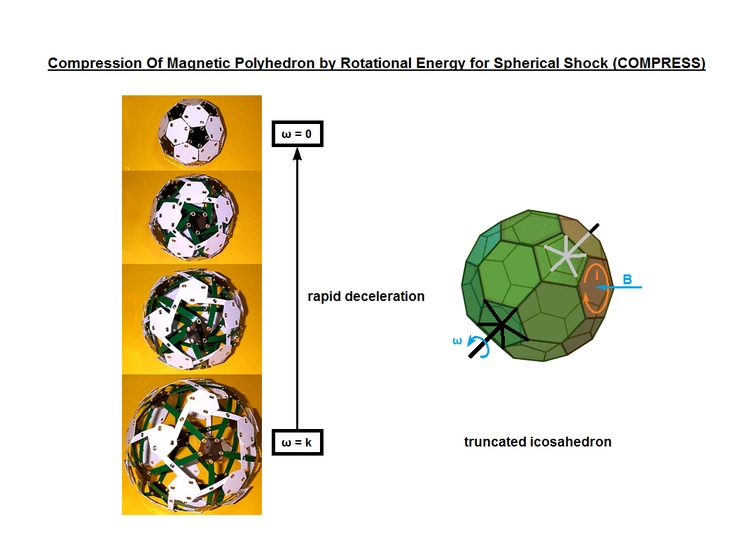

For those really long trips you'll need to maximize your packing efficiency...


D Tibbets
Posts: 2775
Joined: Thu Jun 26, 2008 6:52 am
[phpBB Debug] PHP Warning: in file [ROOT]/vendor/twig/twig/lib/Twig/Extension/Core.php on line 1236: count(): Parameter must be an array or an object that implements Countable

Re: Fold-up Polywell

Postby D Tibbets » Tue Apr 19, 2016 2:19 am

Tension can be managed with robust connections between magnets, but I think interconnects between magnets is recognized as undesirable. Wall standoffs with associated power feeds, and cooling is most likely the best solution by far. Couplings inside the vacuum chamber are fine but each introduces another site for leaking. Leaks, even tiny leaks in high vacuum systems is always a major consideration.


Permanent magnets have been, and may remain useful, mostly for demonstrating certain magnetic geometries and interactions. But for any hope of approaching breakeven, they are anathema. There are always cusps leading directly into magnetic surfaces.

For research purposes in pulsed or short duration machines, active and vigorous cooling may not be needed. But for any power producing pulsed or steady state machine, coolent flow will be need to be significant, even if superconductors are not used- the Ohmic heating by the resistance in copper wires generate a huge amount of heat. Then there are the X-rays and neutron bombardment, and the charged particle impacts due to ExB transport, etc.

Even ignoring any considerations of the structure of the Polywell, the vacuum vessel needs to be robust and up to several times the dimensions of the magrid. If you have a rigid vacuum vessel that limits the size of the structure, the innards are immaterial. The magrid may be broken down for ease of assembly and transport- ie each magnet with associated connections and supports may be bolted onto the vacuum vessel much as in the current WB8 design. But a folded up assembly of multiple magnets adds complexity, if it is doable at all.

Dan Tibbets
To error is human... and I'm very human.

KitemanSA
Posts: 6114
Joined: Sun Sep 28, 2008 3:05 pm
Location: OlyPen WA
[phpBB Debug] PHP Warning: in file [ROOT]/vendor/twig/twig/lib/Twig/Extension/Core.php on line 1236: count(): Parameter must be an array or an object that implements Countable

Re: Fold-up Polywell

Postby KitemanSA » Tue Apr 19, 2016 5:35 am

Well, the first one won't work.

DeltaV
Posts: 2245
Joined: Mon Oct 12, 2009 5:05 am
[phpBB Debug] PHP Warning: in file [ROOT]/vendor/twig/twig/lib/Twig/Extension/Core.php on line 1236: count(): Parameter must be an array or an object that implements Countable

Re: Fold-up Polywell

Postby DeltaV » Tue Apr 19, 2016 1:13 pm
